Enabling Better Voice Quality

In the mass migration to hi-def everything, phone service has been left behind. In fact, the basic speech technology in traditional phone networks has not changed in 75 years. However, new digital technology has arrived that greatly improves sound quality, by intelligently using abundant bandwidth available with broadband connections.

HD Audio Logo

TurboBridge is at the vanguard of this evolution, delivering HD Audio quality by incorporating the ITU Standard wideband speech codec called G.722, along with the Opus codec developed by the Internet Engineering Task Force (IETF).

Delivering a naturally-sounding conversation via audio conferencing requires sophisticated technology, normalizing sound levels, filtering background noises, and balancing audio streams. With HD Audio, the clarity of speech is greatly enhanced, and individual voices are easier to differentiate and understand, more closely simulating the experience of being the same room around a conference table.

It's All About Codecs

Sound quality is determined by the amount of data that is digitally sampled, transmitted and repackaged to reproduce the speaker's voice. Historically, telephone networks have used technology (called codecs) to minimize the amount of bandwidth required for transmission -- so they could carry more calls using the available capacity. Given the relative scarcity of wireless spectrum, mobile phone companies use more aggressive compression technology, which results in poorer sound quality. (To provide better quality would require either more spectrum, which may not be available, or smaller cell sites requiring many more towers.) That's why cell phones sound worse than landline phones, and why phone calls don't replicate your actual speaking voice.

A look at the numbers highlights the issue. There are two key factors:

  1. Sample Rate. This reflects how many times per second is the sound sampled. Audio CDs sample the sound 44,100 times per second (44.1kHz), reproducing a frequency range of 20 kHz, which is the limit of audible sounds to most humans.
  2. Bit Rate. This is the amount of bandwidth required. Sophisticated algorithms are used to minimize bandwidth, but the more aggressive techniques require more computations, leading to transmission delays (called latency). The effect of these techniques is to introduce delays between the time that the speaker talks and is heard on the other end. Fewer bits also means fewer "sound particles", which means greater deviation from the original sound.

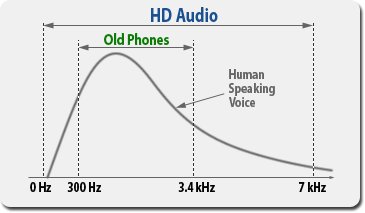

During normal conversations, humans produce sounds from 80 Hz to about 8,000 Hz, with most normal speech occurring between 300 Hz and 3,000 Hz. (Singing or screaming can be outside this range, as you've Voice Frequency Graph no doubt noticed on phone calls.) Based on this, the traditional telephone networks were designed to transmit frequencies up to 3,400 Hz. The primary goal was to deliver sufficient quality to be understood, not to replicate speech quality.

There are three major codecs used by today's telephone networks:

  1. G.711, providing the best legacy telephone sound quality, but consuming the most bandwidth.
  2. G.729, used often for long distance transmission on landline networks, especially for overseas calls.
  3. GSM-HR ("HR" stands for "half-rate"), used by cellular companies.

The table below compares these codecs with the G.722 HD Audio codec:

Codec Sample Rate Frequency Bit Rate Latency
GSM-HR 8 kHz 300 - 3,400 Hz 5.6 kbps 25 ms
G.729 8 kHz 300 - 3,400 Hz 8 kbps 15 ms
G.711 8 kHz 300 - 3,400 Hz 64 kbps 0 ms
G.722 16 kHz 50 - 7,000 Hz 64 kbps 4 ms

Opus is a configurable codec that can accommodate the full audio spectrum in extremely high-quality. With TurboBridge WebCall, we configured our Opus codec with 16 kHz sample rate supporting an 8 kHz frequency range to provide HD Audio quality, operating at a 20 kbps bit rate. The lower bit rate translates into better performance than G.722 in cases with an imperfect broadband connection. Opus adapts well in conditions where you may encounter bandwidth congestion or lower broadband speeds.

The bottom line is that both G.722 and Opus provide a far superior audio sound, delivering a more natural conversation, with better clarity to discriminate between letters "S" and "F" or "P" and "T". This is especially true among female speakers, whose voices generate higher audio frequencies.

Using TurboBridge in HD Audio

To experience TurboBridge conference calls in HD Audio using SIP Access, you need three things:

  • A device enabled with the G.722 wideband codec, such as a computer softphone or an IP Phone.
  • A broadband connection, since the G.722 codec is not enabled on legacy telephone networks.
  • A direct SIP connection to TurboBridge. Learn more about using SIP with TurboBridge.

Many callers can experience TurboBridge in HD Audio by using TurboBridge WebCall, a browser-based application (using WebRTC technology) which allows callers to connect directly through their computer's broadband connection, typically using a HD Audio frequency versus old phones headset (as with Skype). TurboBridge WebCall works through the Chrome and Firefox browsers, without requiring a separate software program, and utilizes the Opus codec to deliver HD Audio quality.

Of course, you don't need special equipment to use TurboBridge. Anybody can access TurboBridge conference calls by dialing into the conference bridge with regular phones, through Skype, or with SIP phones not enabled with the G.722 wideband codec, and still experience outstanding quality, even without the added benefit of HD Audio.

Connecting in HD Audio

You have two options to enjoy HD Audio quality with TurboBridge:
